Samsung 48 dyuymli LTI48022 LCD paneli

Min. Buyurtma:1 Piece/Pieces

Mahsulot xususiyatlari
Ta'minot qobiliyati va qo'shimcha ma'lum...
Paket va etkazib berish
Other information

Mahsulot xususiyatlari

Tovar: Rissant

Ta'minot qobiliyati va qo'shimcha ma'lum...

Hosildorlik: 210k

Kelib chiqishi: Xitoy

Sertifikat: CE/ROSH/ISO9001

Paket va etkazib berish

Sotish birliklari:

Piece/Pieces

Mahsulotni kiritish

LTI480002 modul ekranida u yoritgichli yoritgich bilan jihozlangan, shu jumladan LED Drive Drive Drive, teginish yo'q. Ushbu displeyning ish harorati 0 ~ 50 ° C ni va saqlash harorati -20 ~ 65 ° C. Raqamli imzo kabi mahsulotlar uchun javob beradi.

LTI4800002 displey o'lchamlari 1920 (RGB), jihati 16: 9 (kengligi) va piksellar RGB vertikal chiziqlarda joylashgan. Displey ekranining ekran maydoni 1054,08 (W) × 592.72 (H) ×) ko'rinish, tashqi ko'rinish 1079,88 (d) ×) va ko'rinadigan o'lcham 1060,08 (Vt) × w) × w. 598.92 (h) mm, sirtni davolash matih (25% ni), qattiq qoplama (2h) va chiroqli yorug'lik manbai (pastki).

facing windows display screen

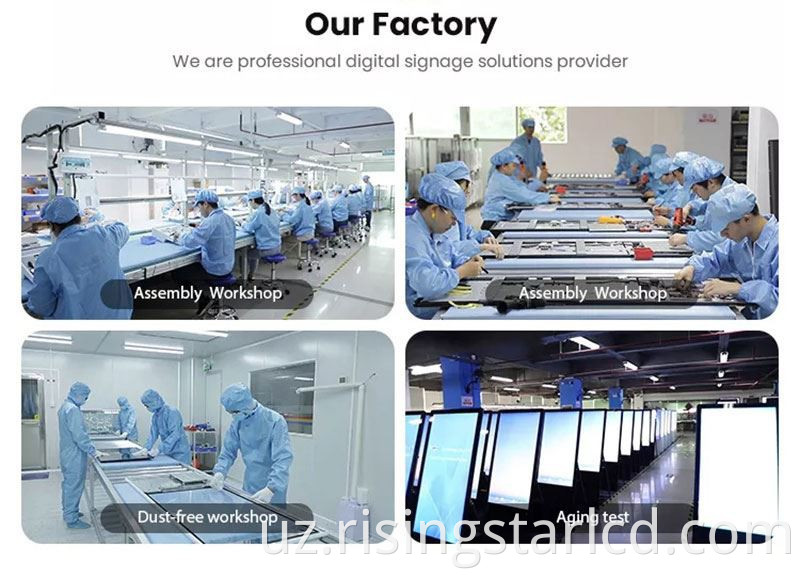

Savol: Siz ishlab chiqaruvchisiz (zavod)?

Javob: Ha, biz. Shuningdek, OEM / ODM xizmati bu erda mavjud. O'zingizning g'oyalaringizni biz bilan baham ko'ring. Siz uchun eng yaxshi echimni ta'minlash bizning zavqimiz.

Savol: Biz sifatni qanday kafolatlashimiz mumkin?

Javob: Doim jo'natishdan oldin yakuniy tekshirish;

Yuqori yorqin lcd

brand	SAMSUNG	Model name	LTI480HN02
size	48 inch	Screen type	a-Si TFT-LCD,LCD module
resolution ratio	1920(RGB)×1080	Pixel configuration	RGB vertical bar
Display Area	1054.08×592.92(H×V)mm	Surface treatment	Fog surface(Haze 25%)，Hard coating (2H)
Visual size	1060.08×598.92(H×V)mm	Contrast Ratio	4000:1 (Typ.) (TM)
Brightness(cd/m²)	500cd/m²(Typ.)or customized	Outline dimension	1079.88×618.72×22.9(H×V×D)mm
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	work environment	Storage temperature: -20 to 65 °C Operation Temperature: 0 to 50 °C
Signal interface	LVDS (2 ch, 8-bit) ,erminal,51pins
supply voltage	12.0V (Typ.)
