Min. Buyurtma:1 Piece/Pieces
Model raqami: EV121WXM-N12

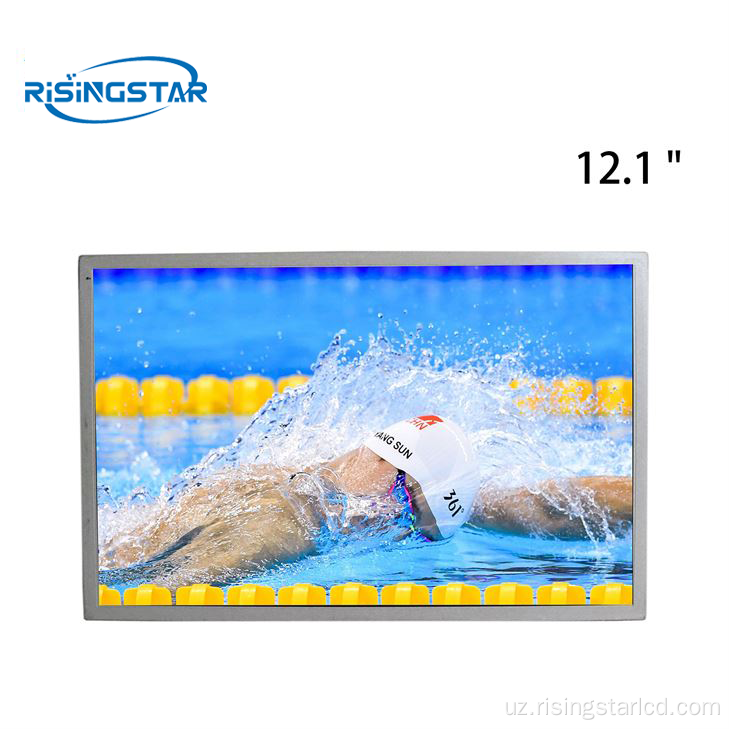

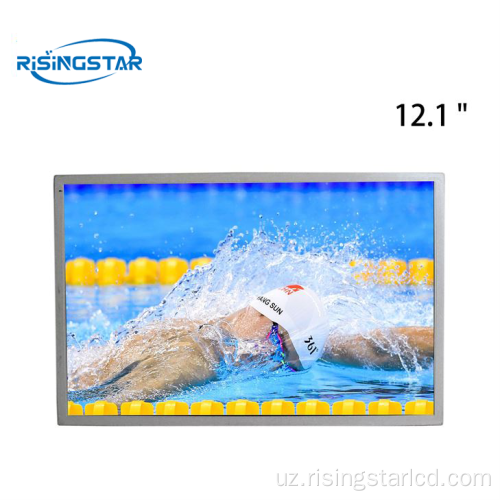

12.1 "Boe EV121WXM-N12 BREDFY 500SIT RAFTA TFT LCD moduli.
Ev121wxm-n12 - bu Boe Technology Co., LTD tomonidan ishga tushirilgan 12.1 dyuymli suyuqlik kristalli modul ishlab chiqarilishi. (Boe) A-SI TFT-LCD texnologiyasidan foydalangan holda. U yoritgichli yoritgich bilan jihozlangan, shu jumladan LED Drive Drive Drive, tegmadi. Aktsiyani yoritish uchun ushbu mahsulotda 50k soat davomida 50k soat, shu jumladan LED drayveri bo'lgan. Uning odatiy vertikal yangilanish stavkasi FV - 60Hz.
| brand | BOE | Model name | EV121WXM-N12 |
| size | 12.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1280(RGB)×800 [WXGA] 124PPI | Pixel configuration | RGB vertical bar |
| Display Area | 261.12 × 163.2 mm (H×V) | Surface treatment | Fog surface,(Haze 25%) |
| Visual size | 264.12 × 166.2 mm (H×V) | Contrast Ratio | 1200:1 (Typ.) (TM) |
| Brightness(cd/m²) | 500 cd/m² (Typ.)or customized | Outline dimension | 277.7×180.6×9.2mm(H×V×D) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 6/8-bit) , erminal, 20 pins | ||
| work environment | Storage temperature: -30 to 80 °C Operation Temperature: -20 to 70 °C |
Issiq teglar: 12.1 "Boe EV121WXM-N12 LCD modul, Xitoy, zavod, arzon, narx, LCD derazasi, 75 dyuymli LCD panel, 19INCH SPRD, 98 dyuymli LCD displey, 1000 dona LCD displeyi
12.1 "Boe AV121X0M-N10 LCD moduli
12.1 "Boe EV121X0M-N10 LCD moduli
