Min. Buyurtma:1 Piece/Pieces
Model raqami: LA123WF1-SR01

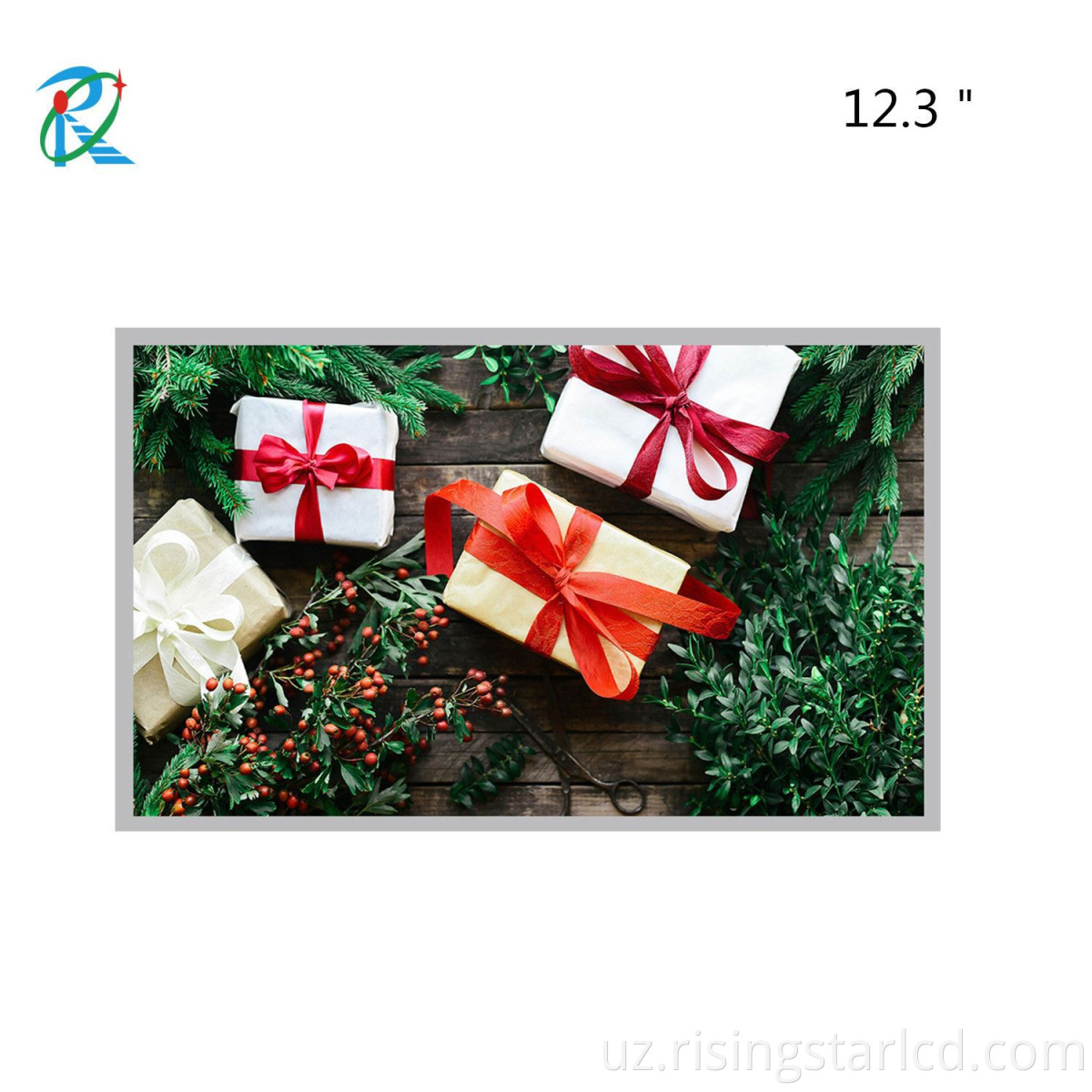

12.3 dyuymli LG Displey LA13WF1-SR01 yuqori yorqinlik LCD paneli ko'rinadigan.
Xuddi shu brend va o'lchamdagi modellar: la123wf1-sr03, la123wf4-sr03, la123wf4-sr01, la123wf4-sr01, la123wf4-sr03, La 123wf3-sr02, la123wf1- SR02, La123WF4-SR09.
Siz ehtiyojlaringizga qarab to'g'ri modelni tanlashingiz mumkin.
| brand | LG Display (LG Display) | Model name | LA123WF1-SR01 |
| size | 12.3 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution | 1920(RGB)×720 167PPI | Pixel configuration | RGB vertical bar |
| Display size | 292.032×109.512(H×V)mm | Surface treatment | Hard coating |
| Brightness(cd/m²) | 600 cd/m² (Min.) or customized | contrast | 800:1 (Typ.) [transmission] |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Appearance of size | 310×128×11.05mm(H×V×D) |
| Signal system | 110 pins RSDS (2 Channel) , FPC |
|
|
| Maximum rated | Storage temperature: -40 ~ 95 °C Working temperature: -40 ~ 85 °C |
|
|
Issiq teglar: 12.3 "LA123WF1-SR01 TFT LCD modul, Xitoy, zavod, arzon, LCD displey ekranlari, 22 dyuymli LCD displey, yuqori issiqlik displeyi lcd displeyi , televizor uchun yupqa ekran, 43 dyuymli LCD displey , LCD panel, LCD modul, yuqori yorqinlik displeyi.
