To'lov turi:T/T,D/P,Paypal
Inkoerm:FOB,CFR,CIF,EXW
Min. Buyurtma:1 Piece/Pieces
Tashish:Ocean,Land,Air,Express
Tovar: Rissant
Tashish: Ocean,Land,Air,Express
To'lov turi: T/T,D/P,Paypal
Inkoerm: FOB,CFR,CIF,EXW
21,5 dyuymli LCD displeyi, yuqorida ishlatiladigan LCD Screen kompaniyasi boshqa struktumdan 21,5 dyuymli uslubga ega bo'lgan 2500 nitlennitaryıkga ega bo'lishi mumkin. Quyosh nuri o'qilishi mumkin bo'lgan LCD ekran, yorug'lik sensori bilan u kun va tun o'rtasida yorqinlikni o'zgartirish mumkin. 21,5 dyuymli LCD displeyi LVDS interfeys.30PIN bilan. Mayze Ekran kuchlanishi 5.0V (TUMAT.)
Xususiyat:
1. 2500 nitsgacha yuqori yorqinlik
2. alyuminiy qotishma dizayni;
3. Matritsazorni yoritishda;
4, orqa nuri haydovchisini avtomatik ravishda xiralashtiradi.
5.Hamri issiqlik tarqalishi va kam quvvat sarfi
| 21.5 inch DLED Lcd Module Product Parameter | |||
|
|
specification | Unit | Remarks |
| size | 21.5" |
|
|
| Brightness | 2000 | nits |
|
| Active Area | 476.064(H)*267.786(V) | mm |
|

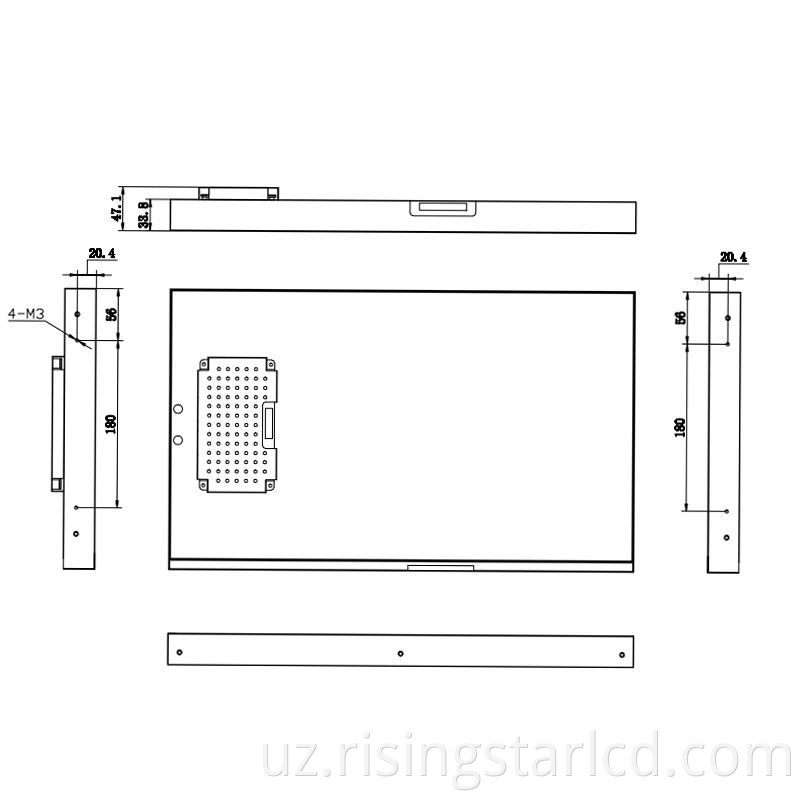

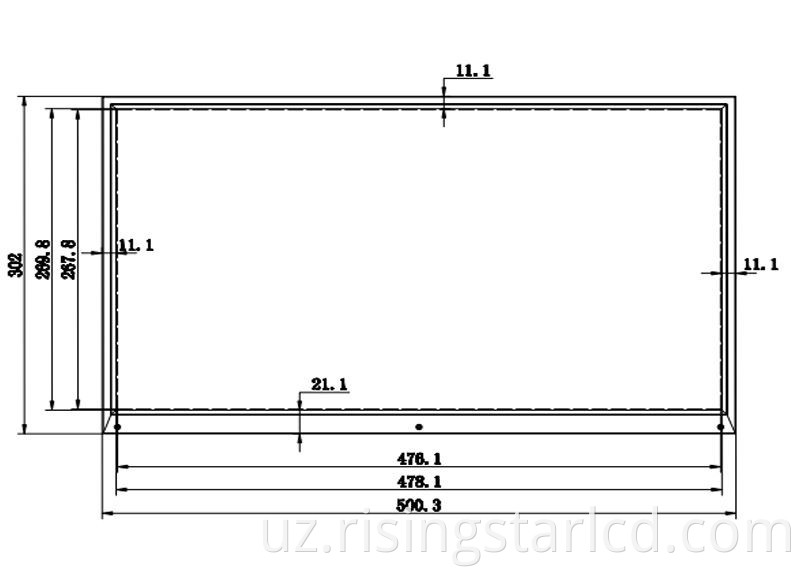

| Dimensional outline | 500.3(H)*302(V)*33.8(D) | mm | detail refer to drawing |
| Number of pixels | 1920*1080 |
|
|
| Type | TFT-LCD |
|
|
| Pixels Pitch | 0.24795×0.24795 | mm |
|
| Display color | 16.7M | colors |
|
| display mode | Normally black |
|
|
| Constrast Ratio | 1000:1 |
|
|
| View Angle | 89/89/89/89(Typ)(CR≥10) |
|
|
| Weight | 2.8 | kgs | Estimated |
| Interface type | LVDS (2ch,8-bit),30 pin |
|
|
| Surface treatment | Haze 25%,3H |
|
|
| Backlight | DLED |
|
|
| Working temperature | 0℃ -- 50℃ |
|
|
Issiq teglar: 21,5 dyuymli LCD displey, Xitoy, zavod, arzon, LCD displey, LCD displey, LCD displey, LCD displey, LCD displeylari, LCD dene ekranlari, LCD displeylar, LCD paneli, LCD paneli, 2000 dona. ekran
