15,4 dyuym 1000 nits quyosh nuri SASSE SFC Ekran

Min. Buyurtma:1 Piece/Pieces

Mahsulot xususiyatlari
Ta'minot qobiliyati va qo'shimcha ma'lum...
Paket va etkazib berish
Other information

Mahsulot xususiyatlari

Tovar: Risordtar

Ta'minot qobiliyati va qo'shimcha ma'lum...

Hosildorlik: 135K

Kelib chiqishi: Shenzhen

Sertifikat: CE/ROSH/UL/ISO9001

Paket va etkazib berish

Sotish birliklari:

Piece/Pieces

Mahsulotni kiritish

15.4V.4000 NFT LCD dis ekranini Shenzhen RiskRardan tashqarida .Bu chiroqli lCD modul, shu jumladan LED TFT-LCD texnologiyasi bilan jihozlangan LCD moduli, yoritgich yaqin yorug'lik bilan moslashishi mumkin. manbalar o'zgaradi.

LCD displeynyumlari juda ko'p ish vaqtini, atrof-muhitning xilma-xilligi va harorat o'zgarishi katta ahamiyatga ega. Shu sababli, yuqori kontrast, mustahkamlik va barqarorlik sanoat LCD displeylarining ajralmas qismiga aylandi. 15,4 dyuymli TFT LCD paneli bu ehtiyojlarga javob beradi.

LCD panelning odatiy yorqinliki 350 donaga etadi, ammo "TFT" ning 1000 CCD Ekranlari "Yuqori yorqinlik ekranida" Yuqori yorqinlik "ekranida yuqori yorqinlik, Express ^Compets -da keng qo'llanilishi mumkin, deya xabar beradi Express Condscts ekranida keng qo'llaniladi Tashqi havoda gazeta ustunini o'qiydi, sahna zonasi ustuni va boshqalar.

Outdoor TFT LCD

15.4 chilagi LCD ekran

Ariza

1000 ta nft lcd ekranlari

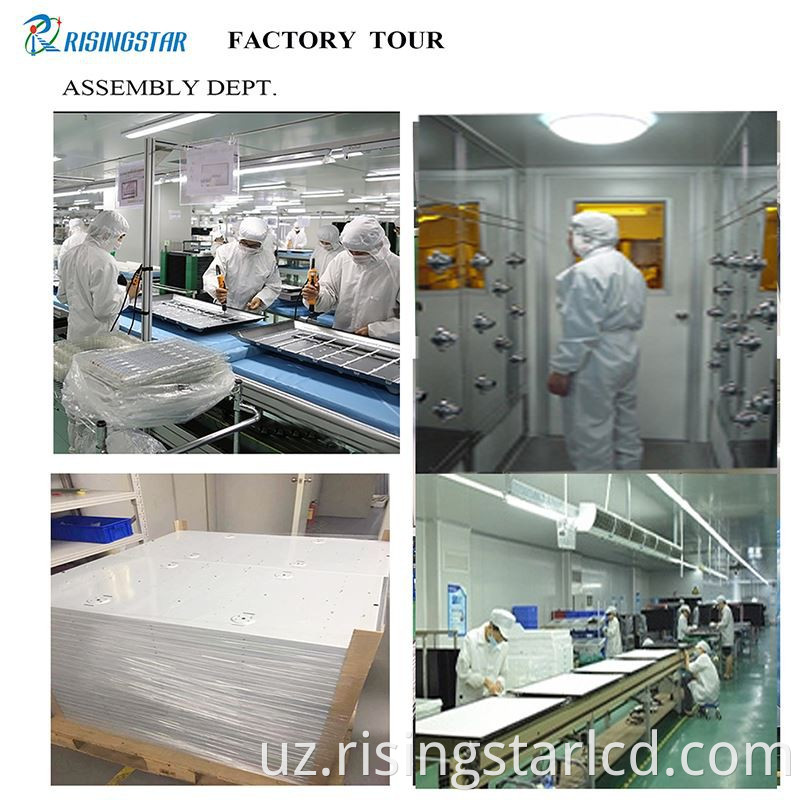

Ishlab chiqarish va etkazib berish

1000 ta tashqi ekran

TFT LCD ekranlari

Product size	15.4"	Type	a-Si TFT-LCD
Pixel Format	1920(RGB)×1200[WUXGA] 147PPI	Configuration	RGB Vertical Stripe
Active Area	330.62(H)×206.64(V) mm	Outline Dim.	341.2(H)×219.14(V) ×13(D) mm
Viewing Angle	80/80/70/70 (Min.)(CR≥10)	Treatment	Hard coating (3H)
Luminance	800-1000 cd/m² (Typ.)	Contrast Ratio	1450:1 (Typ.) (TM)
View Direction	Symmetry	Response Time	10/8(Typ.)(Tr/Td)
Support Color	16.2M 56% NTSC	Light Source	WLED ,20K hours , With LED Driver
Weight	830/850g(Typ./Max)	Designed For	Outdoor High Brightness Automotive Display
Frequency	60Hz	Touch Panel	Without
Interface Type	LVDS(1 ch,2 port) , 6pins
Power Supply	12.0V (Typ.)
Environment	Operating Temperature: -40 ~ 95 °C ; Storage Temperature: -30 ~ 85 °C

Issiq teglar: 15.4shch 1000 ni Outdoor LCD ekran, Xitoy, Zavod, arzon, lCD, LCD, LCD, LCD, LCD, LCD, LCD, Ochiq Digital LCD, Ochiq Digital Rightising , 21 5 ta arzon ekranlar

Ochiq displey belgilari uchun LCD displey

15,4 dyuymli baland yorqinlik tff lcd paneli
