Min. Buyurtma:1 Piece/Pieces
Tovar: Risordtar
Hosildorlik: 189k
Kelib chiqishi: Shenzhen
Sertifikat: ISO9001/CE/ROSH/UL/FCC
15.4 "Yuqori yorqinlik tff lcd paneli, bu LCD paneli 1000 nit, quyosh nuri. Chimi Innolux-ga ega.
Har bir rissantorning yuqori engil ekranlari individual rang (6500 k) kie rangiga (6500 k) oq rangga bo'yalgan; bu nafaqat haqiqiy oq rangni keltirib chiqaradi, balki barcha ekranlar ranglari forma bo'ladi. 500-1000 nitsni tanlash, yorqinlik bir xilligi 90% dan ko'proq.
15.4 "Yuqori yorqinlik tft lcd paneli, u yoritgichli yoritgich bilan jihozlangan, drayver drayveri bilan jihozlangan. (14.7m /) .Bu model keng harorat paneli, yoriq 50k soat, signal portlari, 30 pin.

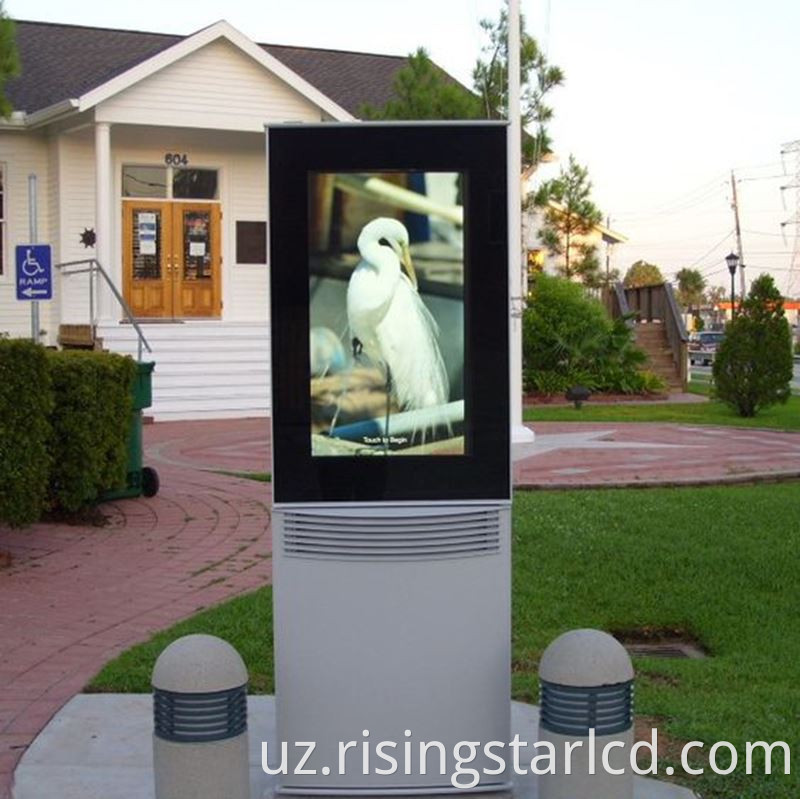

15.4 "Sanoat nazorati displeylarida, elektron klass kartalari, yangi energiya zaryadlash pilobi, ochiq qo'llarni boshqarish panellari, avtoulovlar uchun maxsus ekranlar va boshqalar.
| Product size | 15.4 inch | Type | a-Si TFT-LCD |
| Pixel Format | 1280(RGB)×800[WUXGA] 98PPI | Configuration | RGB Vertical Stripe |
| Active Area | 334.5(H)×210.3(V) mm | Outline Dim. | 352(H)×230(V) ×9.5(D) mm |
| Viewing Angle | 80/80/70/70 (Min.)(CR≥10) | Treatment | Glare , Hard coating (3H) |
| Luminance | 1000 cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | Symmetry | Response Time | 5/11(Typ.)(Tr/Td) |
| Support Color | 16.2M 56% NTSC | Light Source | WLED , 50K hours , With LED Driver |
| Weight | 880g | Designed For | Outdoor High Brightness Automotive Display |
| Frequency | 60Hz | Touch Panel | Without |
| Interface Type | LVDS(1 ch,6/8-bit) , 30pins | ||
| Power Supply | 3.3V (Typ.) | ||
| Environment | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
Issiq teglar: 15,4 dyuymli TFT LCD panel, Xitoy, Zavod, arzon, lCD displey, kichik o'lchamdagi LCD displey, LCD displey, LCD displey, LCD displey, LCD displey, LCD de ekranida Ekran
15.4V.4000 NFT lcd ekranini tashqarida
15000 dona LCD ekranini
