23 dyuymli baland yorqinlik 1500 nits lcd displeyi

Min. Buyurtma:1 Piece/Pieces

Mahsulot xususiyatlari
Ta'minot qobiliyati va qo'shimcha ma'lum...
Paket va etkazib berish
Other information

Mahsulot xususiyatlari

Tovar: Risordtar

Ta'minot qobiliyati va qo'shimcha ma'lum...

Hosildorlik: 150K

Kelib chiqishi: Shen zhen

Sertifikat: CE/ROSH/UL/ISO9001

Paket va etkazib berish

Sotish birliklari:

Piece/Pieces

Mahsulotni kiritish

Ta'minot qobiliyati

Ta'minot qobiliyati:
Yiliga 1000000 dona / dona

Qadoqlash va etkazib berish

Qadoqlash tafsilotlari
Yog'och ramka yoki yog'och qutisi bo'lgan karton

Portlamoq
Shenzhen, Guanzhou

Tasvir misollari:

Bajarish vaqti
:

Quantity(Pieces)	1 - 10	11 - 30	>30
Est. Time(days)	5	10	To be negotiated

Mahsulot tavsifi


Panel item		RS236NET-N15
Panel type		a-Si TFT-LCD
Display mode		IPS,Normally black，transmissive display
Pixels		1920*1080
brightness		1500cd/㎡
Constrast Ratio		1000:1
Response Time		1.5/3.5ms
View angle		85/85/80/80
View area		525.22297.22mm(HV)
Dispaly area		521.28293.22mm(HV)
Outline Size		544.8320.511.5mm(HVD)
Signal Type		LVDS
Working freqyency		60Hz
Working temperature		0- 50ﾟC
Storage Temperature		-20 - +60ﾟC
Display ratio		16:9
Display color		16.7m
Backlight Voltage		5V
Backlight Power Consumption		15.2w
Surface Treatment		Haze 1%,Hard coating(3H)
Weight		2.41kgs

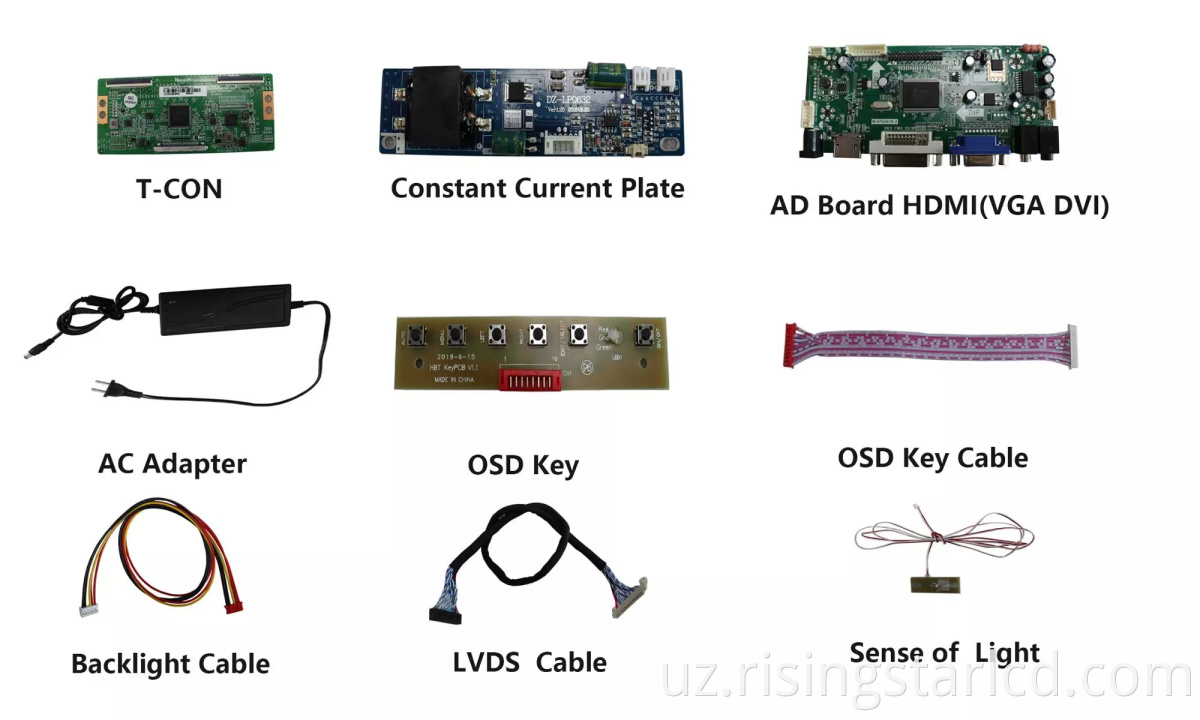

Mahsulot qo'shimcha aksessuarlari
